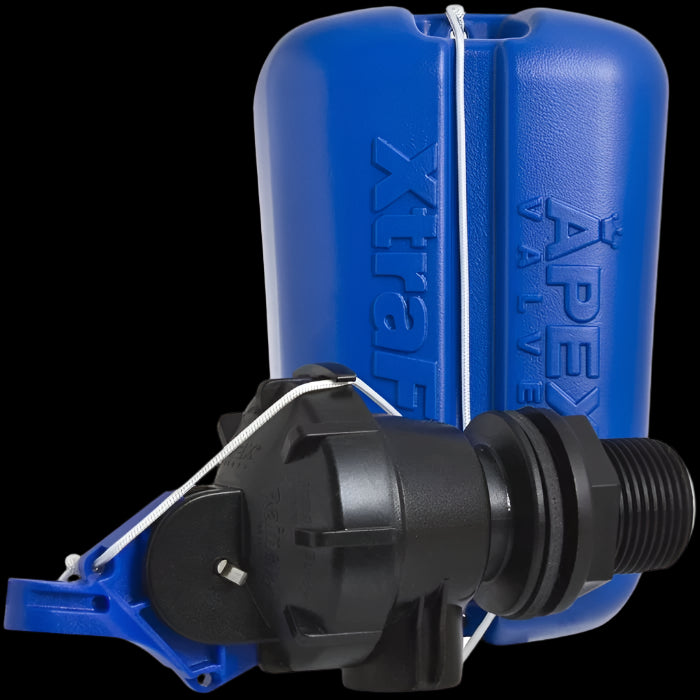

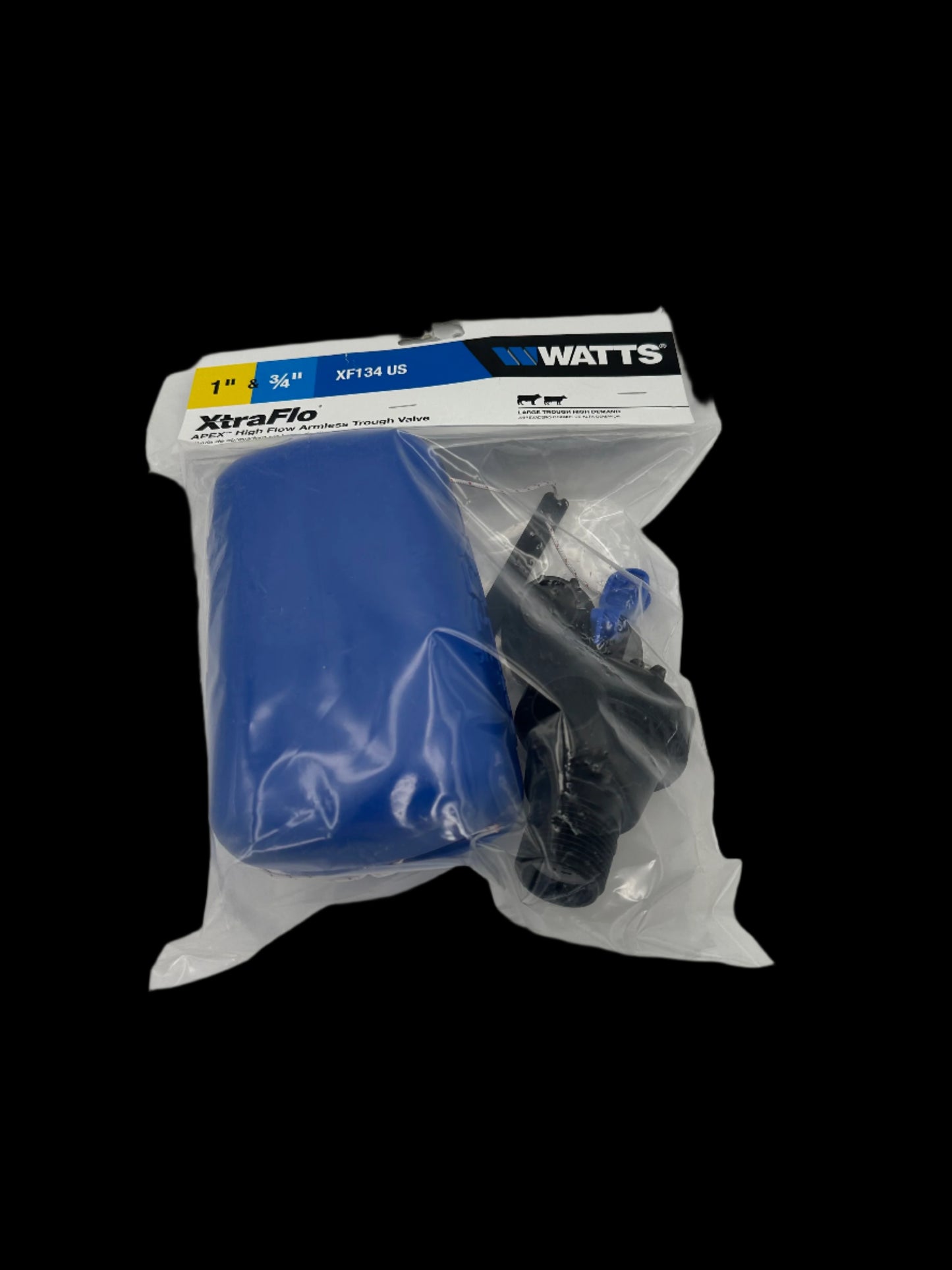

Watts APEX - XtraFlo 1" & 3/4"High Flow Armless Trough Valve

The XtraFlo compact armless diaphragm valve has full-flow high volume fill with a water level differential between opening and closing reducing pump motor overload and electricity. The valve is livestock damage proof. For large troughs, this compact, armless diaphragm valve provides full-flow high volume fill and has a 1 water level differential between opening and closing, which allows full-flow operation meaning the pump runs unrestricted until the trough is full. - Backflow prevention top entry version available - Armless - Less damage from stock (excluding top entry version) - Full on, full off - Bottom, side or top mount - Long tail and top entry version available - UV stabilized and corrosion resistant.

3/4" Xtraflo Long Tail Trough Valve & Float. Large troughs/high demand. Compact armless diaphragm valve with full-flow high volume fill. The valve has a 1" water level differential between opening and closing, reducing pump motor overload. Full-flow operation, the pump runs unrestricted until trough is full. Long-tail version allows for use with thicker walled tanks.

3/4 -1 Inch Apex Xtraflo Trough Valve & Float Highlights:

• Compact robust armless diaphragm trough valve.

• Full-flow operation, the pumps runs unrestricted until trough is full.

• Easy to service with only 3 internal moving parts

• Pressure range 4 psi – 175 psi (30-1,200kPa)

• Patented self cleaning mechanism to minimise blockages

• Every valve factory tested

• Manufactured from incredibly tough UV and corrosion resistant material

• Longtail version available for plastic and thin wall tanks

• 30mm differential between opening and closing (reducing pump motor overload)

• Designed and made in NZ for NZ conditions

• All materials AS4020 approved (water quality standard)

• Used successfully for over 10 years! Proven Reliability

• Closed is completely closed, NO dribbling

• True Armless Design less prone to stock damage

• High flow rate
