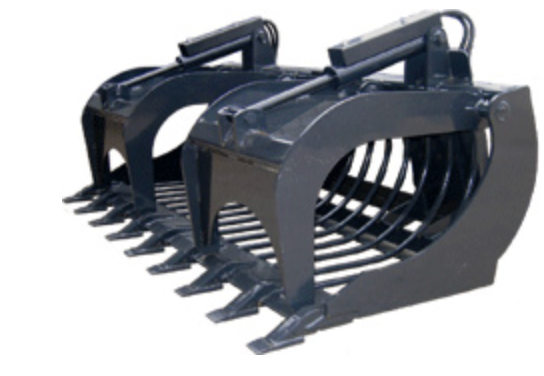

The rod grapple is designed for handling rocks and brush. It has independent twin grapples and industrial grade cylinders.
Features
- Weld-on Tooth bar with replaceable teeth
- All pivot points are greaseable
- Excellent hose routing and abrasion sleeves to protect the hoses from damage
- 3 inch spacing between the rods
- 7/8" round rods (great for cleanout)
- Double cylinder grapple with independent claws
- Industrial 2.5" x 10" cylinders
- Powder Coat Finish
| Bucket Width | 68.5" | ||
| Depth of Bucket | 39" | ||
| Height of Bucket Back | 24" | ||
| Height w/ Grapple closed | 31" | ||
| Overall Grapple Width | 62.5" | ||
| Grapple Width each | 21.5" | ||
| Grapple Opening | 37" | ||
| Weight | 940 lbs. | ||
| Rod Size/Flat Bar Size | 7/8" | 7/8" | |
| Tine Spacing | 3" | 3" |
